Exploring the New Mobile Mark LTX1700 Series

Jesse HallMCA News, Mobile Mark

Introducing the LTX1700 Series: Next-Generation Multi-Carrier Antennas for Unmatched 5G Performance

MCA’s Cellular Networking Solutions (CNS) team is excited to unveil the latest innovation in our antenna lineup: the LTX1700 Series from our trusted partner, Mobile Mark. Designed to excel in the most demanding environments, such as public safety, public transit, and utility communications, the LTX1700 Series sets a new standard in multiband antenna technology. With advanced multi-carrier and MIMO capabilities housed in a durable, compact design, it’s a groundbreaking solution for high-performance 5G connectivity.

Introducing the LTX1700 Series: Redefining Multi-Element Antenna Design


The LTX1700 Series sets a new benchmark in high-density antenna technology, delivering 17-in-1 configurable performance within one of the most compact multi-element radomes. Built to meet the escalating demands for data and connectivity in mobile and fixed applications, the LTX1700 offers unparalleled versatility and performance.

Key configuration options include:

8x 5G/LTE sub-6 GHz antennas for robust, high-speed cellular connectivity.
Up to 8x WiFi 6E/7 antennas to support next-generation wireless performance.
1x GNSS antenna with multi-constellation support for GPS, Galileo, Glonass, QZSS, and Beidou.
Each antenna element is meticulously designed to deliver exceptional MIMO-enabled connectivity, ensuring reliable, high-throughput communication across critical frequency bands. The LTX1700 is the perfect solution for mission-critical applications and advanced mobile routing needs.

Key Features and Capabilities


17-In-1 Multi-Band Coverage


  • 5G NR and LTE bands worldwide, including CBRS (3.55–3.7 GHz) and Band 71 (617–698 MHz).
  • Wi-Fi 6E/7 frequencies (2.4–2.5 GHz and 4.9–7.2 GHz).
  • L1, L2, and L5 bands (1561, 1575, and 1602 MHz).

Engineered for Demanding Applications


Purpose-built for fleets and transit operations, the LTX1700 meets IP67 dust and water resistance standards and passes rigorous shock and vibration testing. This makes it an excellent choice for mobile use in rugged or harsh environments.

Compact, Low-Profile Design

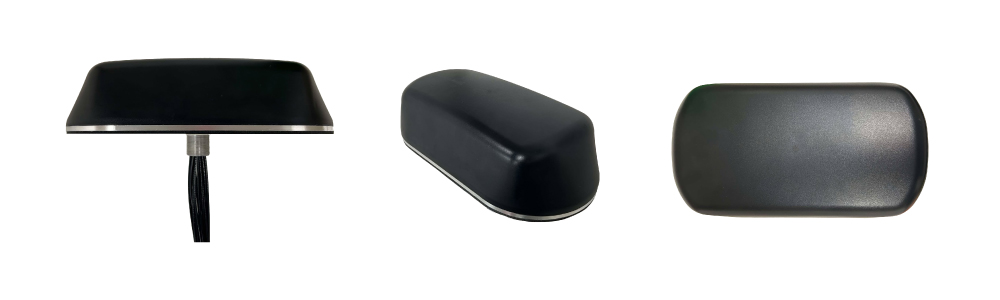

Despite its impressive multi-band capabilities, the LTX1700 features a sleek, low-profile design (10.7” x 5.5” x 2.88”), making it ideal for space-constrained platforms. It includes color-coded cable harnesses and custom-length jumpers for quick, clean installation, perfect for routers like the AirLink XR90, which it fully supports when configured with Fakra connectors.

Advanced MIMO Configurations


The flexible design of the LTX1700 supports:

  • 8x8 MIMO on a single carrier.
  • 4x4 MIMO on two carriers.
  • 2x2 MIMO on four carriers.

This adaptability allows organizations to maximize the performance of modern 5G routers, even in complex or high-demand network environments.

Rapid Delivery and Customization


Manufactured in North America and Europe, Mobile Mark ensures lead times of three weeks or less, even for custom configurations. This fast turnaround helps MCA’s deployment teams meet tight deadlines without sacrificing quality or precision.

Ideal Applications for the LTX1700


Public Safety and First Responders


Emergency vehicles equipped with mobile command systems and XR-series routers need fast, reliable communication across multiple networks when lives are at stake. The LTX1700 delivers with redundant multi-carrier cellular connectivity, high-speed WiFi backhaul, and dependable GNSS tracking to ensure mission-critical performance.

Public Transit and Fleet Vehicles


The LTX1700 combines cellular, WiFi, and GPS capabilities into a durable, all-in-one solution for city buses, rail systems, and municipal fleets. Its low-profile design allows for unobtrusive roof mounting while ensuring seamless connectivity for fare collection, video uploads, and real-time communication systems.

Utility and Infrastructure Operations


Utilities leveraging private LTE, 5G, or CBRS networks require antennas capable of delivering reliable performance across vast regions. The LTX1700 ensures consistent uplink reliability, supports real-time video transmission, and integrates smoothly with SCADA systems and edge monitoring tools to keep operations running efficiently.

Model Spotlight: LTXG1788


For those demanding top-tier performance, the flagship LTXG1788 stands out with:

  • 8x LTE/5G sub-6 antennas
  • 8x WiFi 6E/7 antennas
  • 1x GNSS antenna

This model is an ideal companion for dual-radio routers like the Sierra Wireless AirLink XR90 or other enterprise-grade modems, ensuring fully MIMO-enabled connectivity across all interfaces for unparalleled reliability and speed.

Seamless Connectivity Without Compromise


The Mobile Mark LTX1700 Series is more than just an antenna, it’s a cutting-edge network solution. With its exceptional antenna density, durable construction, and comprehensive spectrum coverage, it sets the standard for high-reliability, high-bandwidth mobile deployments.

At MCA’s Cellular Networking Solutions group, we take pride in delivering next-generation wireless solutions. The LTX1700 Series meets the demands of today’s missions, markets, and moments with unmatched precision and performance.

For more details or to request a quote for your next deployment, get in touch with MCA’s CNS team today.
